DAU

Features

Spray Angle

45°/80°/110°


Spray Pattern

Flat Fan spray, the spray area into an irregular ring ellipse.


Drops

Particle Size 20μm~100μm.


Features

The transmission mode can be selected by siphon/gravity, or by pressure.

Internal gas drive chamber, control "switch" operation, can run 180 cycles per minute.

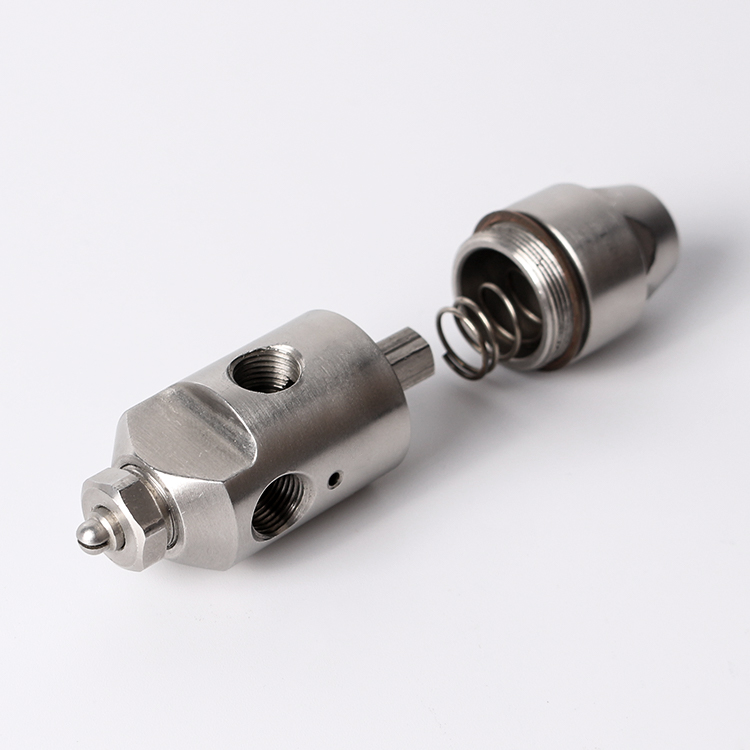

Parts are available in nickel-plated brass or stainless steel with stainless steel needle valves, fluid caps and stainless steel springs.



Spread

Release Agent/Deodorant/Oil/Surface Treatment Agent/Rust Inhibitor/lubricant/Insect Repellent/Urea Water/Others.


Cooling Down

Mold/Gas/Steel Plate/Steel Sheet/Casting/Vehicle Body/Coating/Glass Plate/Plastic/Others.


Damp Down

Coal Yard/Dump Yard/Garbage Yard/Other.


Product parameters

Inlet Conn.1/8,1/4ThreadBSPT/NPTParticle Size20-100μm
Spray Angle45°、80°、110°MaterialS303、S304 、S316StructureNozzle mouth/core/cap/connector four components




Products Case


×
